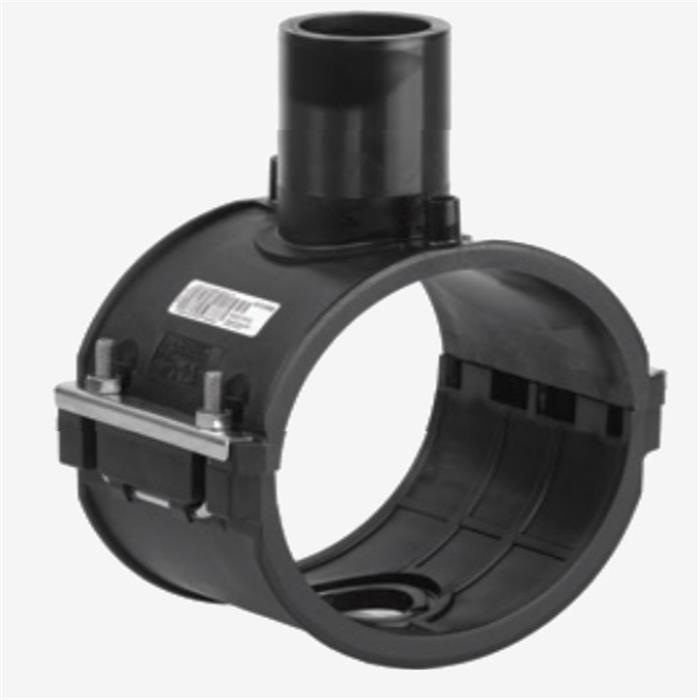

Electrofusion EF Saddle

Electrofusion EF Saddle
Code	dxd1 (mm)	B (mm)	H (mm)	H1 (mm)	L (mm)	UC	W g
492404	63x32	100	59	49	118	394	56
492404	63x40	100	78	66	118	400	40
492404	63x50	100	93	82	118	430	40
492404	63x63	100	94	85	118	462	40
492404	75x32	117	59	49	118	431	48
492404	75x40	117	78	66	118	451	36
492404	75x50	117	93	82	118	465	32
492404	75x63	117	94	85	118	522	32
495804	90x32	126	59	49	118	519	32
495804	90x40	126	78	68	118	529	32
495804	90x50	126	93	82	118	550	32
495804	90x63	126	94	85	118	608	24
495804	90x90	139	105	90	176	934	15
495804	110x32	148	59	49	118	585	24
495804	110x40	148	78	68	118	598	24
495804	110x50	148	93	82	118	629	20
495804	110x63	148	94	85	118	658	20
495804	110x90	162	105	90	118	948	18
495804	125x32	162	59	49	118	620	24
495804	125x40	162	78	68	118	613	20
495804	125x50	162	93	82	118	690	20
495804	125x63	162	94	85	118	721	16
495804	125x90	169	105	90	118	953	18
495804	140x32	180	59	49	118	689	24
495804	140x40	180	78	68	118	664	16
495804	140x50	180	93	82	118	721	16
495804	140x63	180	94	85	118	736	16
495804	140x90	174	105	90	176	965	16
495804	160x32	200	59	49	118	708	16
495804	160x40	200	78	68	118	722	16
495804	160x50	200	93	82	118	782	16
495804	160x63	200	94	85	118	825	16
495804	160x90	176	105	90	176	956	16
495804	180x32	219	59	49	118	800	16
495804	180x40	219	78	68	118	800	12
495804	180x50	219	93	82	118	828	12
495804	180x63	219	94	85	118	886	12
495804	180x90	182	105	90	176	976	15
495804	200x63	202	102	85	176	862	15
495804	200x90	202	105	90	176	900	15
495804	225x63	227	102	85	176	930	15
495804	225x90	227	105	90	176	983	15
495804	250x63	252	102	85	176	970	15
495804	250x90	252	105	90	176	990	15
495804	280x90	282	105	90	176	990	15
495804	315x90	317	105	90	176	990	15
