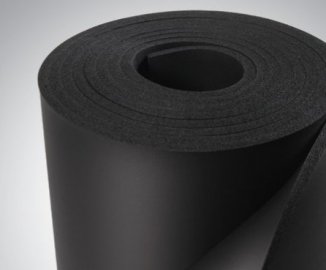

Oneflex Rubber Foam Sheet

Oneflex Rubber Foam Sheet
Properties
Thermal conductivity coefficient λ (W/m.K )		0.032(O°C)
İntensity kg/mᶟ		45-60 kg/mᶟ
Usage Temperature		-70°C ile +100 °C
Water Vapour Diffusion Resistance Coefficient µ		≥7000
Fire Class Euro Classe EN 13501-1		B s3 d0
Product Details
Thickness(mm)	Plate Width(1000 mm) m²/Roll	Plate Width (1200 mm) m²/Roll
6	30	-
9	20	24
13	14	16,80
19	10	12
25	8	9,60
32	6	7,20
50	4	4,80
Elastomeric Rubber Foam Insulation Boards Thermal insulation boards are produced in 2 different widths between 100 and 120 cm according to the distances between the flanges of the ventilation ducts with various thicknesses and rectangular sections. Wide production range; 7 different thickness, 2 different width production; They are produced in the most suitable sizes (1000-1200 mm) for the insulation of the channels. Reduces waste rate on rectangular channels. In round section channels, it reduces the use of tape and saves total cost. Thanks to its flexible structure, it helps to reduce vibration at the channel connection points. Oneflex Formix® contact adhesive is suitable when bonding to the duct.
